Products — Custom Springs and Wire Forms

We manufacture to drawing. The table below shows the materials and finishing we work with most often; if your requirement is different, describe it and we will tell you whether it is something we can hold.

Product	Typical wire range	Common materials	Typical end treatment

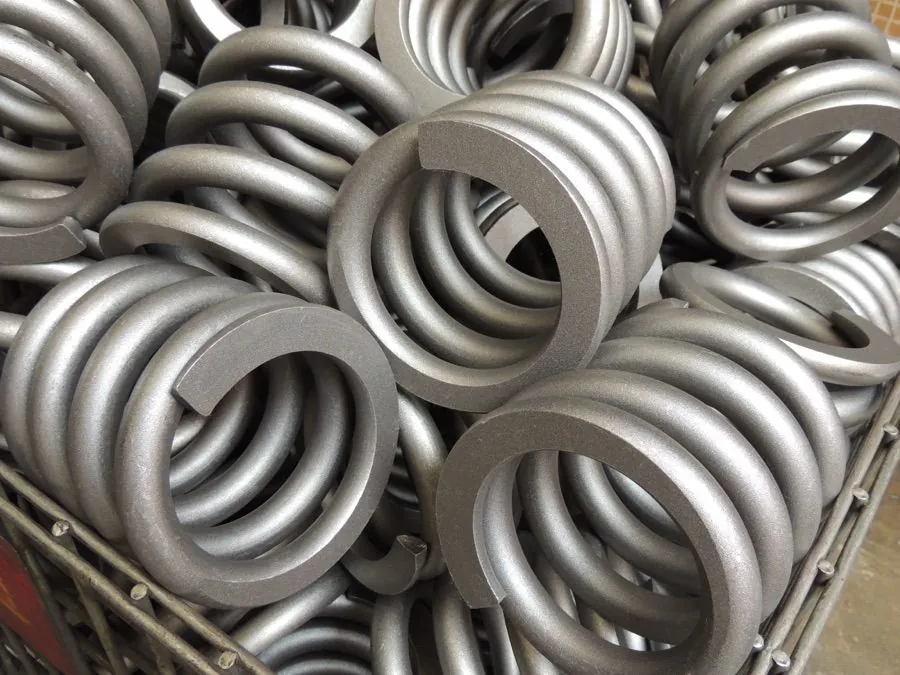

Compression springs	0.08 – 6.0 mm	carbon steel, 301/302/304/316 stainless, 17-7PH	closed, closed and ground

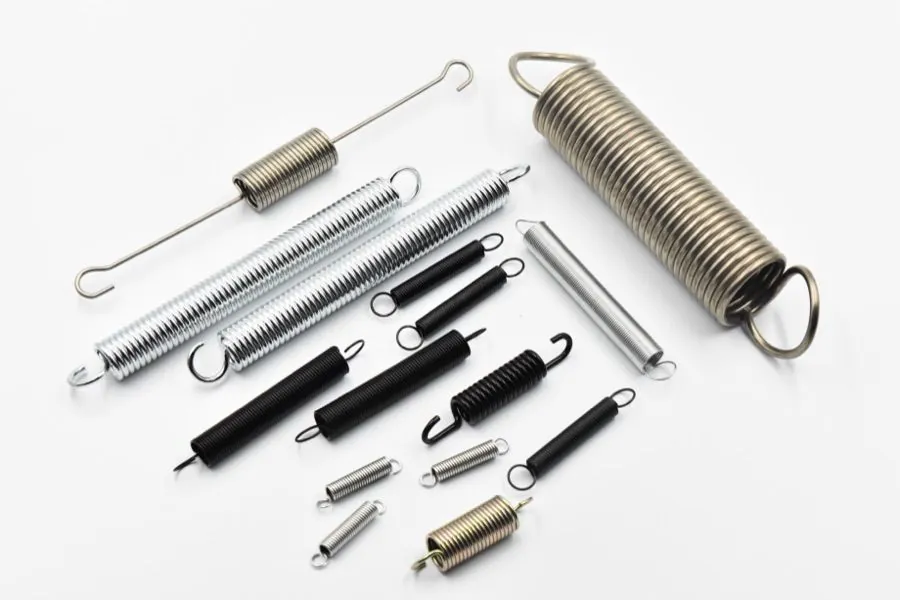

Extension springs	0.08 – 6.0 mm	carbon steel, stainless	loop, hook, custom end form

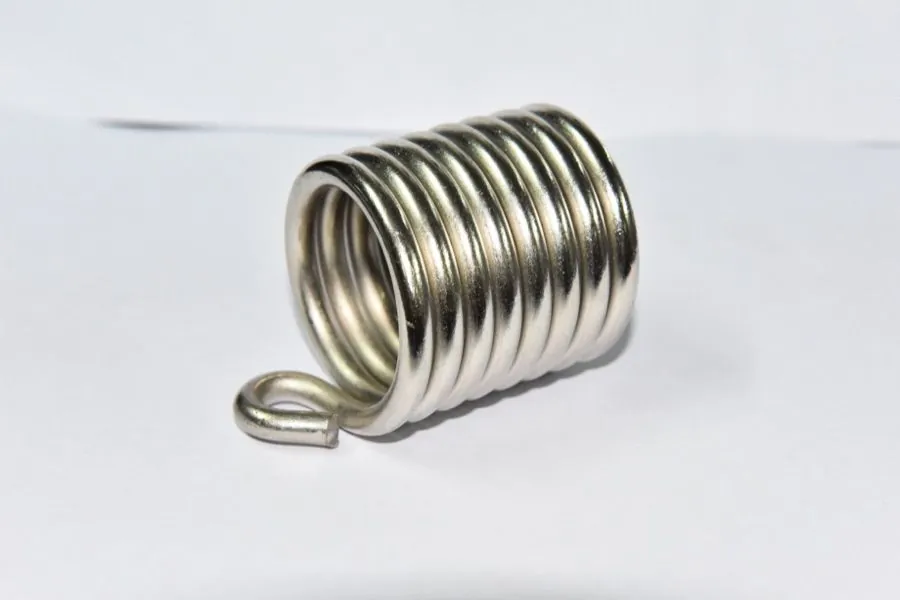

Torsion springs	0.08 – 6.0 mm	carbon steel, stainless	straight legs, bent legs

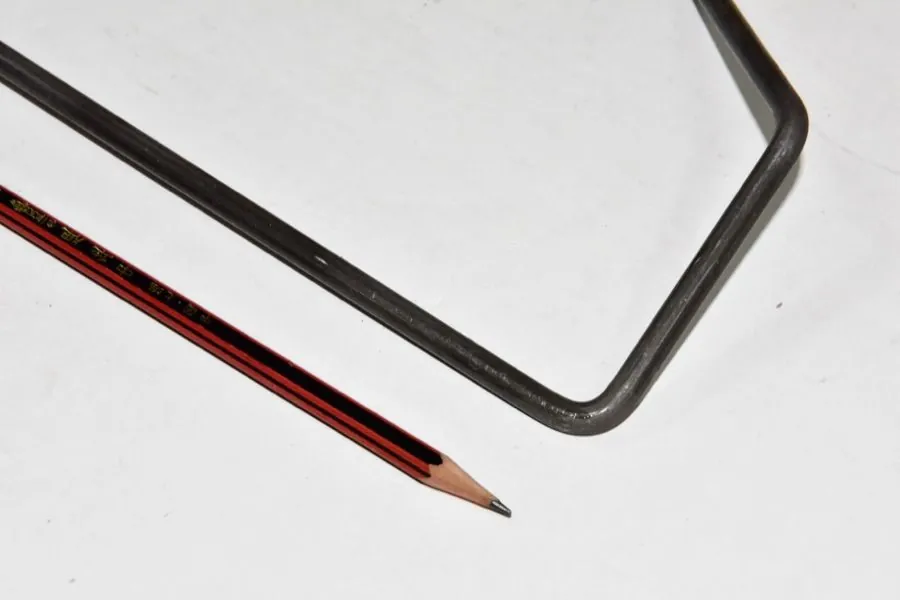

Formed wire parts	0.08 – 6.0 mm	stainless, carbon steel	as drawn

Finishing and processing

Heat treatment, end grinding, passivation and plating. If a customer specification calls for something we do not do in-house, we will say so at quotation stage rather than after the order.

Materials we are asked for

Carbon steel, 301, 302, 304 and 316 stainless, 17-7PH, Elgiloy and Inconel grades are all frequently requested. Availability varies by grade and quantity — ask early if the material is unusual, because lead time is usually set by the wire, not by the winding.

Not sure if we can make it?

Send the drawing. The most common answer is yes; the second most common is a clear no with a reason. Both are more useful to you than a maybe.
